From GitBox <...@apache.org>
Subject [GitHub] [storm] srdo commented on a change in pull request #3166: STORM-3536 Add Generic-resources.md
Date Thu, 14 Nov 2019 16:29:10 GMT
srdo commented on a change in pull request #3166: STORM-3536 Add Generic-resources.md
URL: https://github.com/apache/storm/pull/3166#discussion_r346415838



 ##########
 File path: docs/Generic-resources.md
 ##########
 @@ -0,0 +1,39 @@
+---
+title: Generic Resources
+layout: documentation
+documentation: true
+---
+
+### Generic Resources
+Generic Resources allow Storm to reference arbitrary resource types. Generic Resources may
be considered an extension of the resources enumerated by the [Resource Aware Scheduler](Resource_Aware_Scheduler_overview.html),
which accounts for CPU and memory.
+
+### API Overview
+For a Storm Topology, the user can now specify the amount of generic resources a topology
component (i.e. Spout or Bolt) is required to run a single instance of the component. The
user can specify the resource requirement for a topology component by using the following
API call.
+```
+   public T addResource(String resourceName, Number resourceValue)
+```
+Parameters:
+-   resourceName – The name of the generic resource
+-   resourceValue – The amount of the generic resource
+
+Example of Usage:
+```
+   SpoutDeclarer s1 = builder.setSpout("word", new TestWordSpout(), 10);
+   s1.addResouce("gpu.count", 1.0);
+```
+
+### Specifying Generic Cluster Resources
+
+A storm administrator can specify node resource availability by modifying the _conf/storm.yaml_
file located in the storm home directory of that node.
+```
+   supervisor.resources.map: {[type<String>] : [amount<Double>]}
+```
+Example of Usage:
+```
+   supervisor.resources.map: {"gpu.count" : 2.0}
+```
+
+

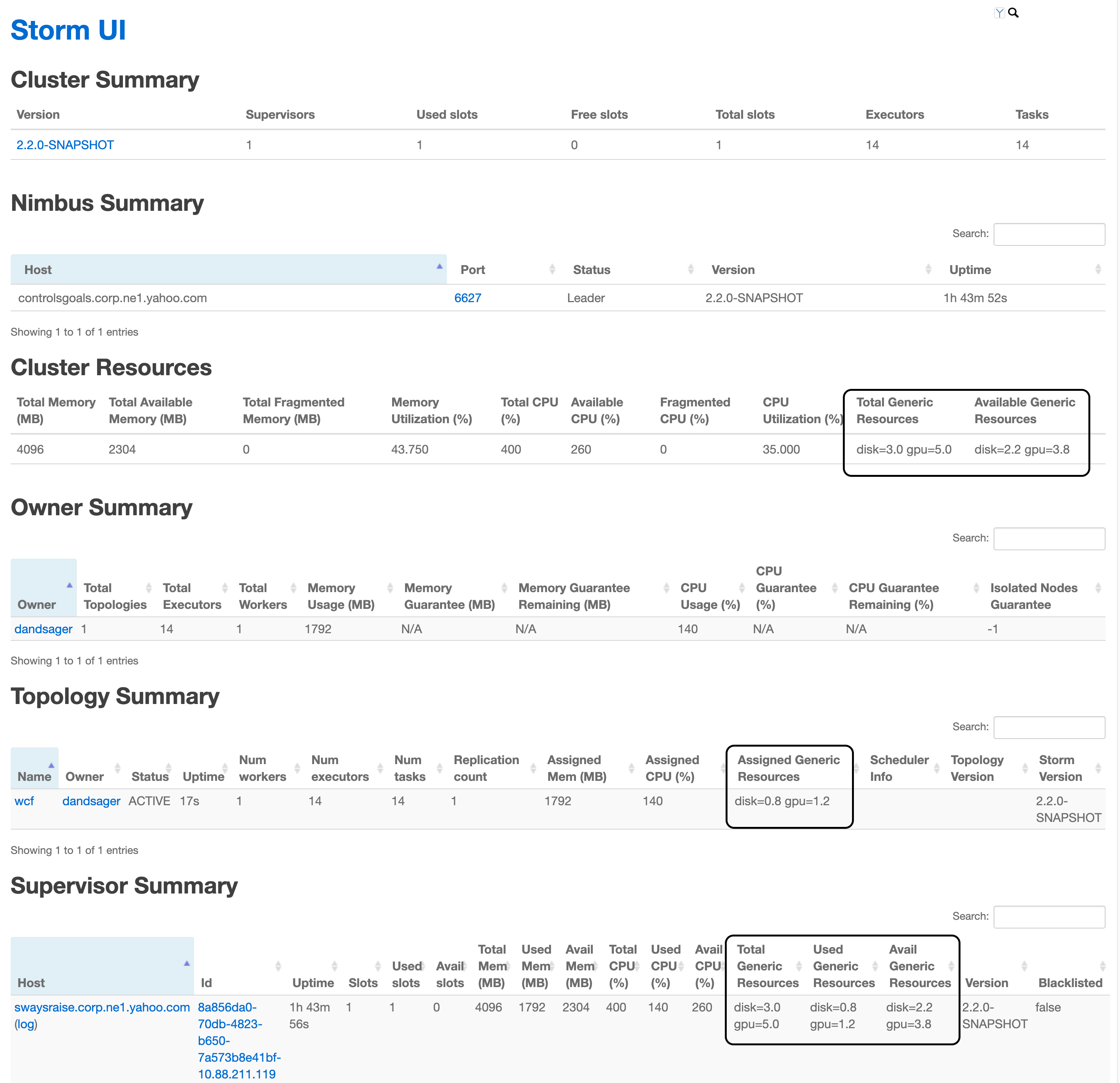

+### Generic Resources in UI
+
+![Storm Cluster UI](https://user-images.githubusercontent.com/50145295/68497812-06d1b280-021b-11ea-9f96-8946bf4193fc.png)

 Review comment:
   I think you can put this image in the /images directory instead, that way we avoid the
site breaking if this image disappears.

----------------------------------------------------------------
