From zjf...@apache.org
Subject [zeppelin] branch master updated: [ZEPPELIN-4265]. Support more types of output for IPythonInterpreter
Date Wed, 07 Aug 2019 08:14:59 GMT
This is an automated email from the ASF dual-hosted git repository.

zjffdu pushed a commit to branch master
in repository https://gitbox.apache.org/repos/asf/zeppelin.git


The following commit(s) were added to refs/heads/master by this push:
     new a04bdb3  [ZEPPELIN-4265]. Support more types of output for IPythonInterpreter
a04bdb3 is described below

commit a04bdb349bc9ff8f3ccf68687f60f5938a88cec0
Author: Jeff Zhang <zjffdu@apache.org>
AuthorDate: Mon Aug 5 10:31:44 2019 +0800

    [ZEPPELIN-4265]. Support more types of output for IPythonInterpreter

    ### What is this PR for?
    The final target of IPythonInterpreter is to make zeppelin IPythonInterpreter compatible
with jupyter. I tried several popular python viz tools. And find some of them doesn't work
due to IPythonInterpreter's limitation. This PR is trying to support more types of output
for IPythonInterpreter.

    ### What type of PR is it?
    [Improvement]

    ### Todos
    * [ ] - Task

    ### What is the Jira issue?
    * Open an issue on Jira https://issues.apache.org/jira/browse/ZEPPELIN/
    * Put link here, and add [ZEPPELIN-*Jira number*] in PR title, eg. [ZEPPELIN-533]

    ### How should this be tested?

    ### Screenshots (if appropriate)

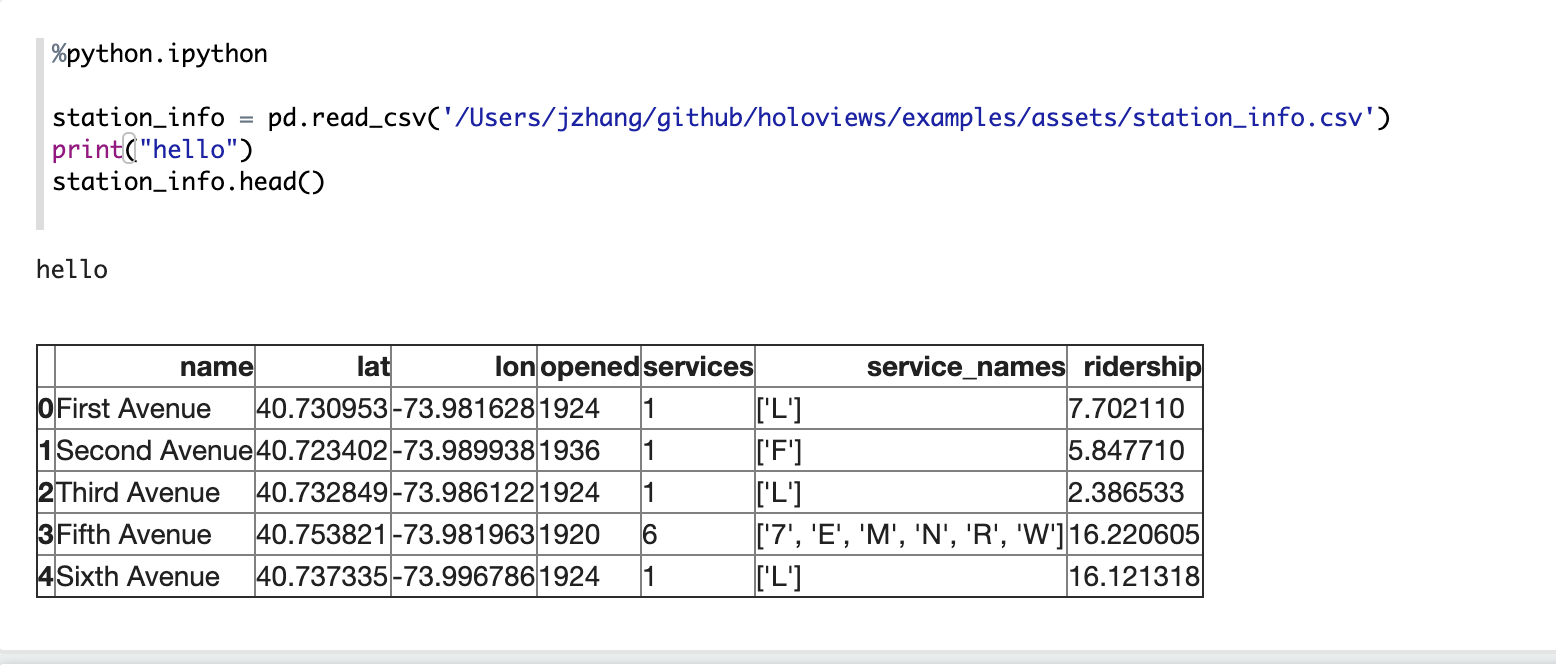

    **Pands**
    ![image](https://user-images.githubusercontent.com/164491/62295599-fe414180-b49f-11e9-930c-461c83fb7285.png)

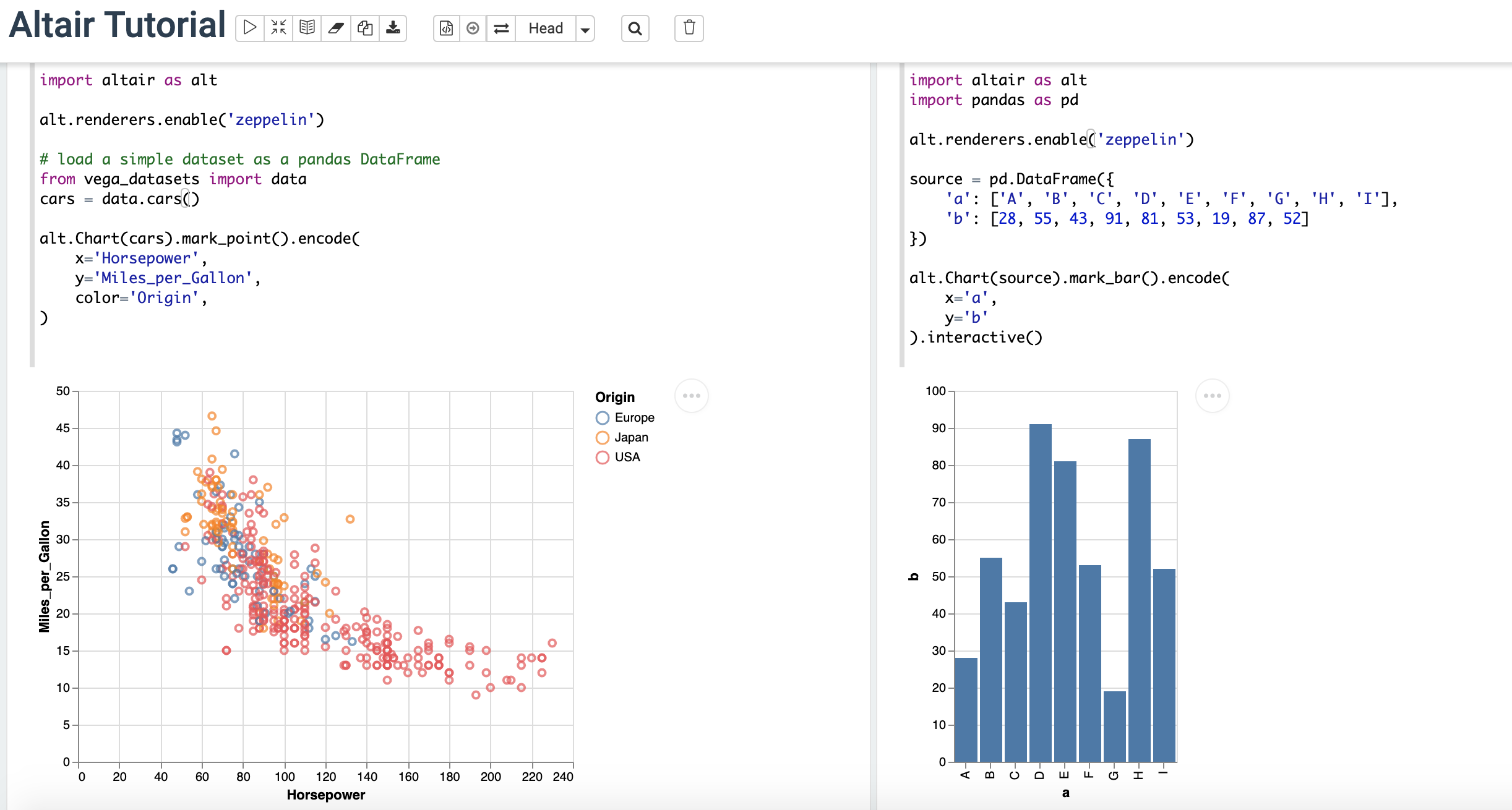

    **Altair**

    ![image](https://user-images.githubusercontent.com/164491/62284745-d1ccfb80-b486-11e9-9c97-01fc2dda5975.png)

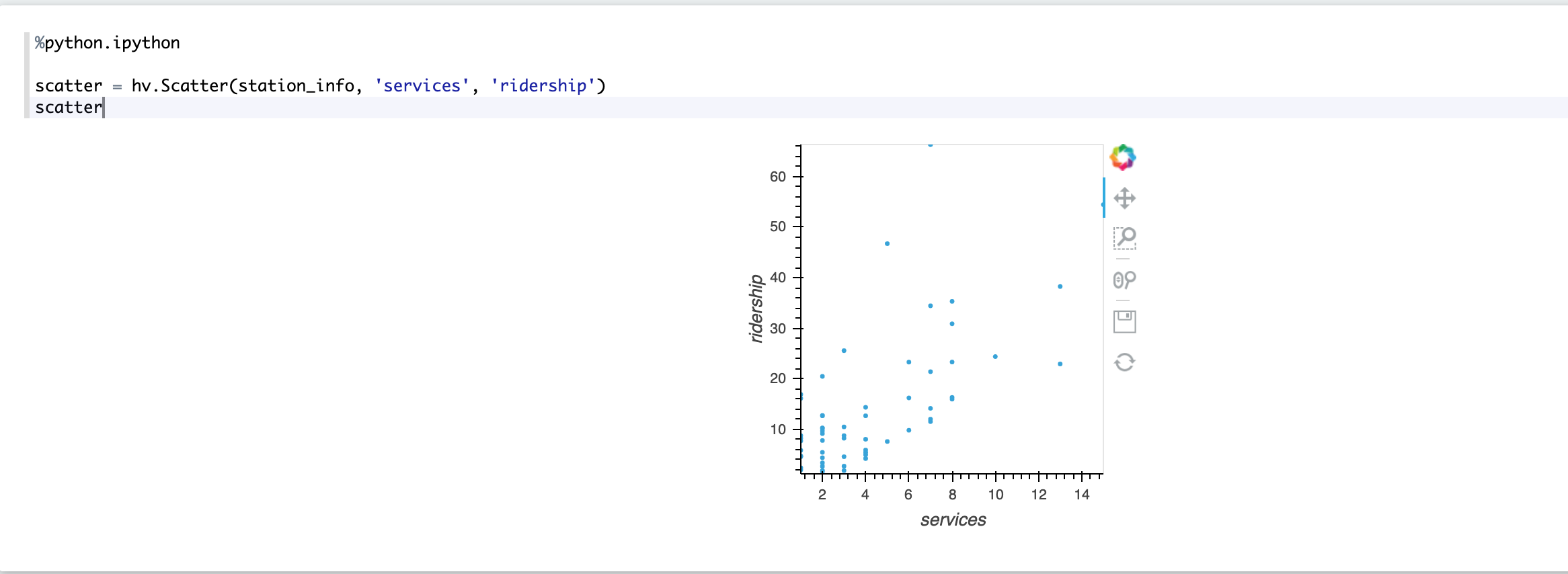

    **HoloView**

    ![image](https://user-images.githubusercontent.com/164491/62285001-5ddf2300-b487-11e9-825f-0de4bc051012.png)

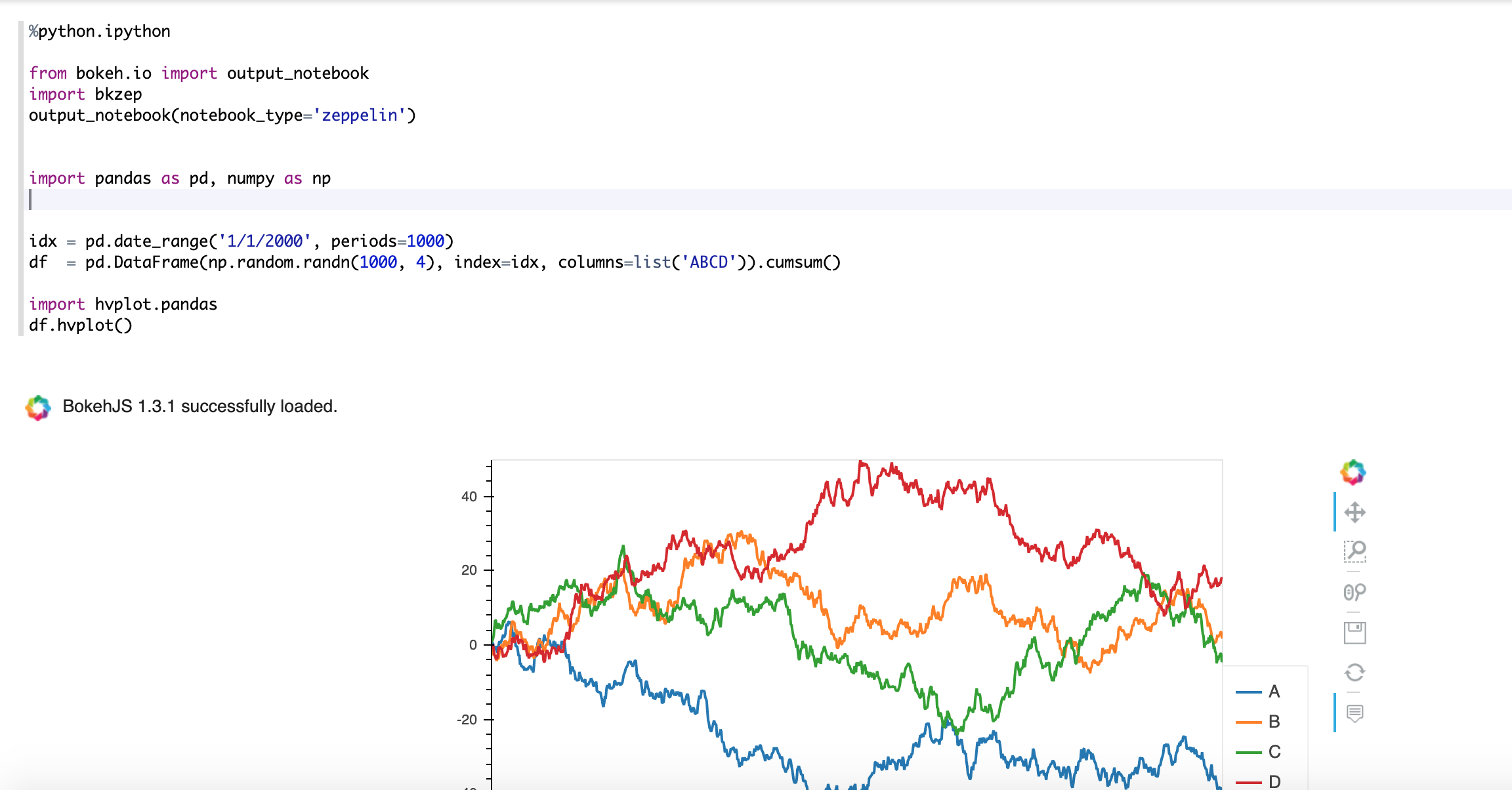

    **HvPlot**
    ![image](https://user-images.githubusercontent.com/164491/62285038-6d5e6c00-b487-11e9-8eed-39bd6a405545.png)

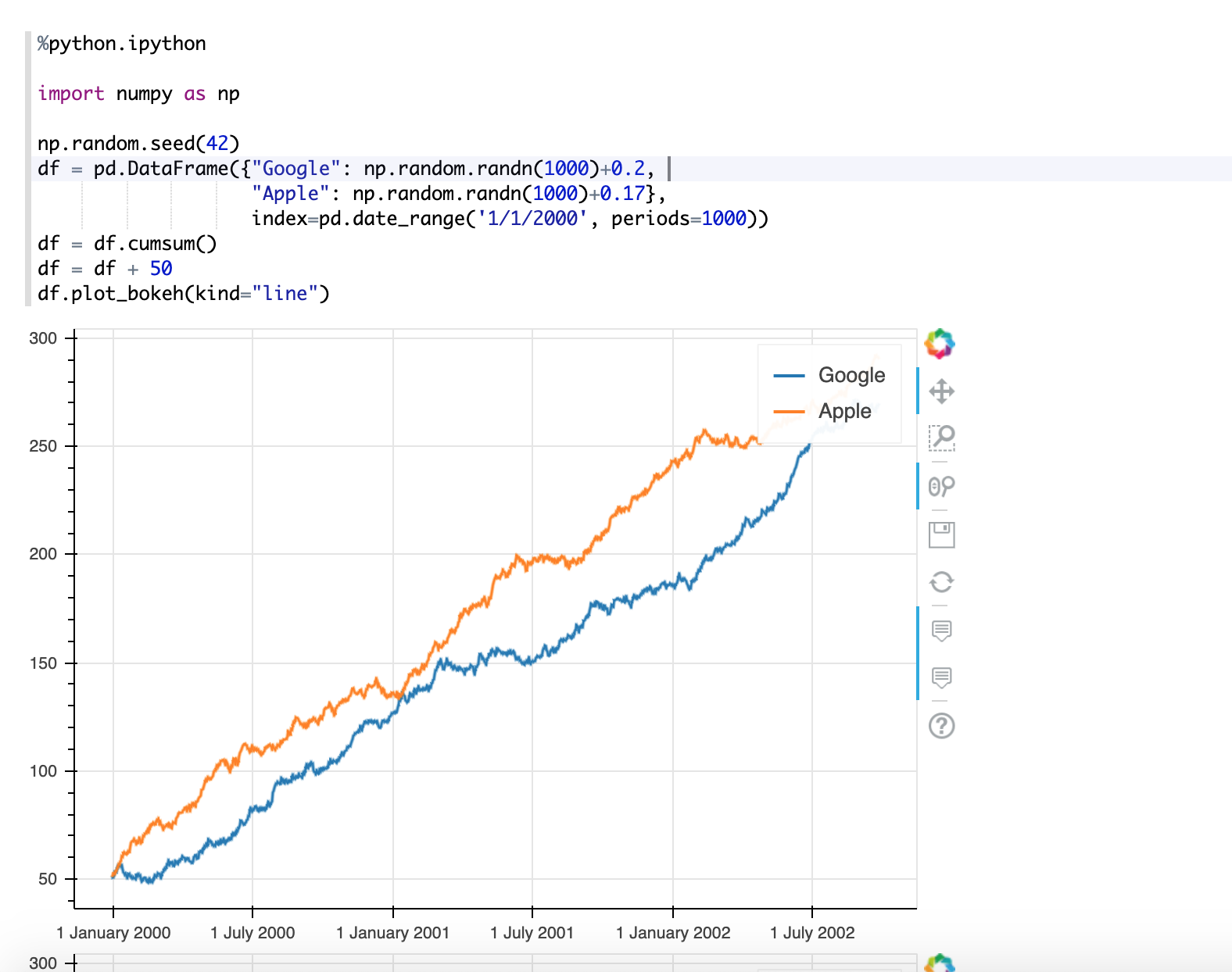

    **Pandas Bokeh**
    ![image](https://user-images.githubusercontent.com/164491/62285342-fd9cb100-b487-11e9-94c8-b4da33cfe672.png)

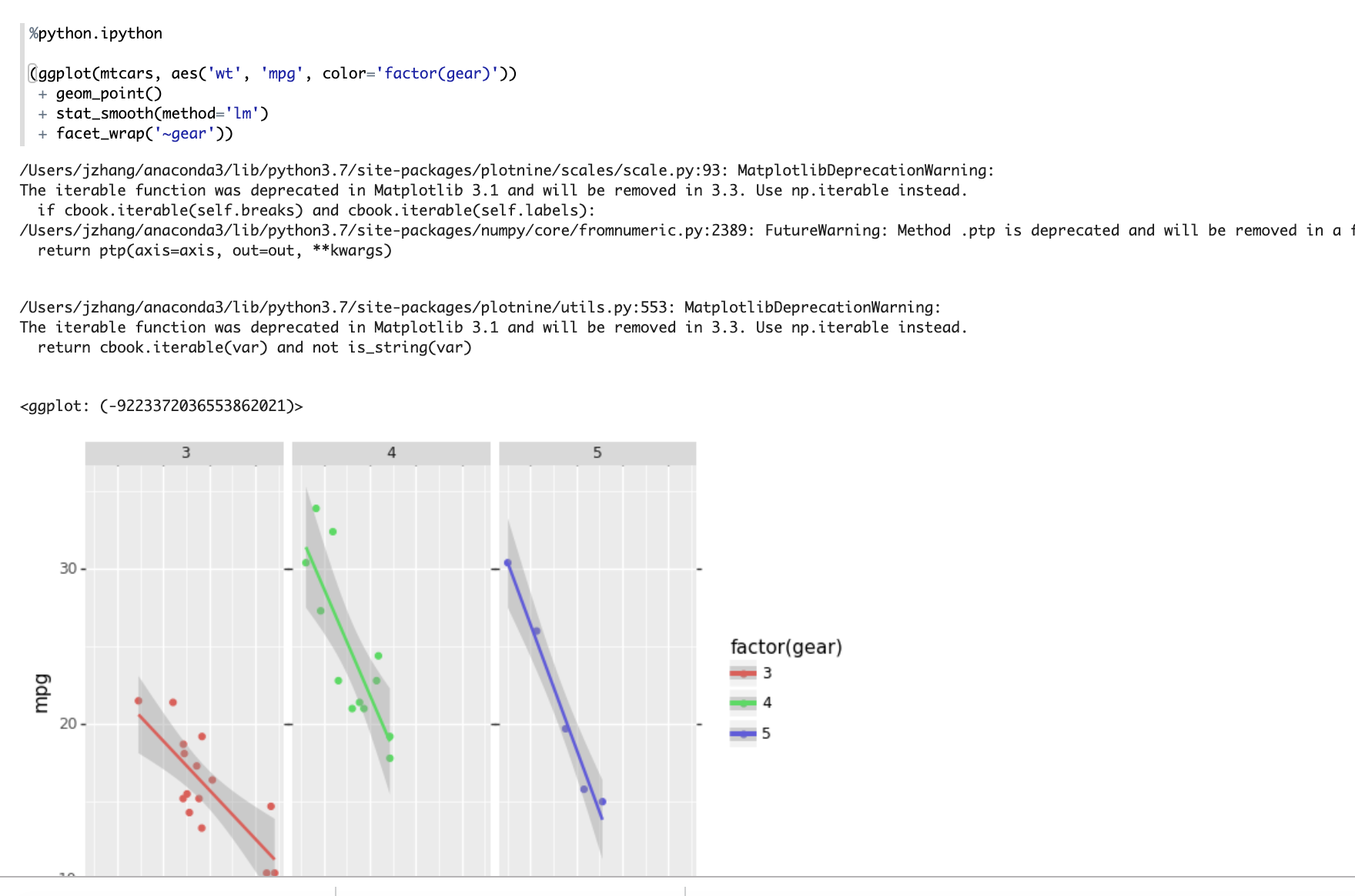

    **Plotnine**
    ![image](https://user-images.githubusercontent.com/164491/62304961-9a277900-b4b1-11e9-91d3-51687cab90be.png)

    ### Questions:
    * Does the licenses files need update? No
    * Is there breaking changes for older versions? No
    * Does this needs documentation? No

    Author: Jeff Zhang <zjffdu@apache.org>

    Closes #3419 from zjffdu/ZEPPELIN-4265 and squashes the following commits:

    475a91f16 [Jeff Zhang] revert changes in ipython_client.py
    2ebac7568 [Jeff Zhang] [ZEPPELIN-4265]. Support more types of output for IPythonInterpreter
---
 .../org/apache/zeppelin/python/IPythonClient.java  |  42 ++-
 python/src/main/proto/ipython.proto                |   7 +-
 .../src/main/resources/grpc/python/ipython_pb2.py  | 398 ++++++---------------
 .../main/resources/grpc/python/ipython_server.py   |  70 +++-
 .../zeppelin/python/IPythonInterpreterTest.java    |  35 +-
 .../apache/zeppelin/dep/DependencyResolver.java    |   6 +-
 .../zeppelin/notebook/repo/VFSNotebookRepo.java    |   4 +
 7 files changed, 239 insertions(+), 323 deletions(-)

diff --git a/python/src/main/java/org/apache/zeppelin/python/IPythonClient.java b/python/src/main/java/org/apache/zeppelin/python/IPythonClient.java
index c729898..ec0c052 100644
--- a/python/src/main/java/org/apache/zeppelin/python/IPythonClient.java
+++ b/python/src/main/java/org/apache/zeppelin/python/IPythonClient.java
@@ -88,35 +88,47 @@ public class IPythonClient {
     LOGGER.debug("stream_execute code:\n" + request.getCode());
     asyncStub.execute(request, new StreamObserver<ExecuteResponse>() {
       int index = 0;
-      boolean isPreviousOutputImage = false;

       @Override
       public void onNext(ExecuteResponse executeResponse) {
+        LOGGER.debug("Interpreter Streaming Output: " + executeResponse.getType() +
+                "\t" + executeResponse.getOutput());
+        if (index != 0) {
+          try {
+            // We need to add line separator first, because zeppelin only recoginize the
% at
+            // the line beginning.
+            interpreterOutput.write("\n".getBytes());
+          } catch (IOException e) {
+            LOGGER.error("Unexpected IOException", e);
+          }
+        }
+
         if (executeResponse.getType() == OutputType.TEXT) {
           try {
-            LOGGER.debug("Interpreter Streaming Output: " + executeResponse.getOutput());
-            if (isPreviousOutputImage) {
-              // add '\n' when switch from image to text
-              interpreterOutput.write("\n%text ".getBytes());
+            if (executeResponse.getOutput().startsWith("%")) {
+              // the output from ipython kernel maybe specify format already.
+              interpreterOutput.write((executeResponse.getOutput()).getBytes());
+            } else {
+              interpreterOutput.write(("%text " + executeResponse.getOutput()).getBytes());
             }
-            isPreviousOutputImage = false;
-            interpreterOutput.write(executeResponse.getOutput().getBytes());
             interpreterOutput.getInterpreterOutput().flush();
           } catch (IOException e) {
             LOGGER.error("Unexpected IOException", e);
           }
         }
-        if (executeResponse.getType() == OutputType.IMAGE) {
+        if (executeResponse.getType() == OutputType.PNG ||
+                executeResponse.getType() == OutputType.JPEG) {
           try {
-            LOGGER.debug("Interpreter Streaming Output: IMAGE_DATA");
-            if (index != 0) {
-              // add '\n' if this is the not the first element. otherwise it would mix the
-              // with the text
-              interpreterOutput.write("\n".getBytes());
-            }
             interpreterOutput.write(("%img " + executeResponse.getOutput()).getBytes());
             interpreterOutput.getInterpreterOutput().flush();
-            isPreviousOutputImage = true;
+          } catch (IOException e) {
+            LOGGER.error("Unexpected IOException", e);
+          }
+        }
+        if (executeResponse.getType() == OutputType.HTML) {
+          try {
+            interpreterOutput.write(("%html\n" + executeResponse.getOutput()).getBytes());
+            interpreterOutput.getInterpreterOutput().flush();
           } catch (IOException e) {
             LOGGER.error("Unexpected IOException", e);
           }
diff --git a/python/src/main/proto/ipython.proto b/python/src/main/proto/ipython.proto
index a54f36d..16a7ebe 100644
--- a/python/src/main/proto/ipython.proto
+++ b/python/src/main/proto/ipython.proto
@@ -53,7 +53,12 @@ enum IPythonStatus {

 enum OutputType {
   TEXT = 0;
-  IMAGE = 1;
+  PNG = 1;
+  JPEG = 2;
+  HTML = 3;
+  SVG = 4;
+  JSON = 5;
+  LaTeX = 6;
 }

 // The request message containing the code
diff --git a/python/src/main/resources/grpc/python/ipython_pb2.py b/python/src/main/resources/grpc/python/ipython_pb2.py
index eca3dfe..0bad160 100644
--- a/python/src/main/resources/grpc/python/ipython_pb2.py
+++ b/python/src/main/resources/grpc/python/ipython_pb2.py
@@ -23,7 +23,6 @@ from google.protobuf import descriptor as _descriptor
 from google.protobuf import message as _message
 from google.protobuf import reflection as _reflection
 from google.protobuf import symbol_database as _symbol_database
-from google.protobuf import descriptor_pb2
 # @@protoc_insertion_point(imports)

 _sym_db = _symbol_database.Default()
@@ -35,7 +34,8 @@ DESCRIPTOR = _descriptor.FileDescriptor(
   name='ipython.proto',
   package='ipython',
   syntax='proto3',
-  serialized_pb=_b('\n\ripython.proto\x12\x07ipython\"\x1e\n\x0e\x45xecuteRequest\x12\x0c\n\x04\x63ode\x18\x01
\x01(\t\"l\n\x0f\x45xecuteResponse\x12&\n\x06status\x18\x01 \x01(\x0e\x32\x16.ipython.ExecuteStatus\x12!\n\x04type\x18\x02
\x01(\x0e\x32\x13.ipython.OutputType\x12\x0e\n\x06output\x18\x03 \x01(\t\"\x0f\n\rCancelRequest\"\x10\n\x0e\x43\x61ncelResponse\"1\n\x11\x43ompletionRequest\x12\x0c\n\x04\x63ode\x18\x01
\x01(\t\x12\x0e\n\x06\x63ursor\x18\x02 \x01(\x05\"%\n\x12\x43ompletionRe [...]
+  serialized_options=_b('\n org.apache.zeppelin.python.protoB\014IPythonProtoP\001\242\002\007IPython'),
+  serialized_pb=_b('\n\ripython.proto\x12\x07ipython\"\x1e\n\x0e\x45xecuteRequest\x12\x0c\n\x04\x63ode\x18\x01
\x01(\t\"l\n\x0f\x45xecuteResponse\x12&\n\x06status\x18\x01 \x01(\x0e\x32\x16.ipython.ExecuteStatus\x12!\n\x04type\x18\x02
\x01(\x0e\x32\x13.ipython.OutputType\x12\x0e\n\x06output\x18\x03 \x01(\t\"\x0f\n\rCancelRequest\"\x10\n\x0e\x43\x61ncelResponse\"1\n\x11\x43ompletionRequest\x12\x0c\n\x04\x63ode\x18\x01
\x01(\t\x12\x0e\n\x06\x63ursor\x18\x02 \x01(\x05\"%\n\x12\x43ompletionRe [...]
 )

 _EXECUTESTATUS = _descriptor.EnumDescriptor(
@@ -46,15 +46,15 @@ _EXECUTESTATUS = _descriptor.EnumDescriptor(
   values=[
     _descriptor.EnumValueDescriptor(
       name='SUCCESS', index=0, number=0,
-      options=None,
+      serialized_options=None,
       type=None),
     _descriptor.EnumValueDescriptor(
       name='ERROR', index=1, number=1,
-      options=None,
+      serialized_options=None,
       type=None),
   ],
   containing_type=None,
-  options=None,
+  serialized_options=None,
   serialized_start=399,
   serialized_end=438,
 )
@@ -69,15 +69,15 @@ _IPYTHONSTATUS = _descriptor.EnumDescriptor(
   values=[
     _descriptor.EnumValueDescriptor(
       name='STARTING', index=0, number=0,
-      options=None,
+      serialized_options=None,
       type=None),
     _descriptor.EnumValueDescriptor(
       name='RUNNING', index=1, number=1,
-      options=None,
+      serialized_options=None,
       type=None),
   ],
   containing_type=None,
-  options=None,
+  serialized_options=None,
   serialized_start=440,
   serialized_end=482,
 )
@@ -92,17 +92,37 @@ _OUTPUTTYPE = _descriptor.EnumDescriptor(
   values=[
     _descriptor.EnumValueDescriptor(
       name='TEXT', index=0, number=0,
-      options=None,
+      serialized_options=None,
       type=None),
     _descriptor.EnumValueDescriptor(
-      name='IMAGE', index=1, number=1,
-      options=None,
+      name='PNG', index=1, number=1,
+      serialized_options=None,
+      type=None),
+    _descriptor.EnumValueDescriptor(
+      name='JPEG', index=2, number=2,
+      serialized_options=None,
+      type=None),
+    _descriptor.EnumValueDescriptor(
+      name='HTML', index=3, number=3,
+      serialized_options=None,
+      type=None),
+    _descriptor.EnumValueDescriptor(
+      name='SVG', index=4, number=4,
+      serialized_options=None,
+      type=None),
+    _descriptor.EnumValueDescriptor(
+      name='JSON', index=5, number=5,
+      serialized_options=None,
+      type=None),
+    _descriptor.EnumValueDescriptor(
+      name='LaTeX', index=6, number=6,
+      serialized_options=None,
       type=None),
   ],
   containing_type=None,
-  options=None,
+  serialized_options=None,
   serialized_start=484,
-  serialized_end=517,
+  serialized_end=565,
 )
 _sym_db.RegisterEnumDescriptor(_OUTPUTTYPE)

@@ -112,7 +132,12 @@ ERROR = 1
 STARTING = 0
 RUNNING = 1
 TEXT = 0
-IMAGE = 1
+PNG = 1
+JPEG = 2
+HTML = 3
+SVG = 4
+JSON = 5
+LaTeX = 6



@@ -129,14 +154,14 @@ _EXECUTEREQUEST = _descriptor.Descriptor(
       has_default_value=False, default_value=_b("").decode('utf-8'),
       message_type=None, enum_type=None, containing_type=None,
       is_extension=False, extension_scope=None,
-      options=None),
+      serialized_options=None, file=DESCRIPTOR),
   ],
   extensions=[
   ],
   nested_types=[],
   enum_types=[
   ],
-  options=None,
+  serialized_options=None,
   is_extendable=False,
   syntax='proto3',
   extension_ranges=[],
@@ -160,28 +185,28 @@ _EXECUTERESPONSE = _descriptor.Descriptor(
       has_default_value=False, default_value=0,
       message_type=None, enum_type=None, containing_type=None,
       is_extension=False, extension_scope=None,
-      options=None),
+      serialized_options=None, file=DESCRIPTOR),
     _descriptor.FieldDescriptor(
       name='type', full_name='ipython.ExecuteResponse.type', index=1,
       number=2, type=14, cpp_type=8, label=1,
       has_default_value=False, default_value=0,
       message_type=None, enum_type=None, containing_type=None,
       is_extension=False, extension_scope=None,
-      options=None),
+      serialized_options=None, file=DESCRIPTOR),
     _descriptor.FieldDescriptor(
       name='output', full_name='ipython.ExecuteResponse.output', index=2,
       number=3, type=9, cpp_type=9, label=1,
       has_default_value=False, default_value=_b("").decode('utf-8'),
       message_type=None, enum_type=None, containing_type=None,
       is_extension=False, extension_scope=None,
-      options=None),
+      serialized_options=None, file=DESCRIPTOR),
   ],
   extensions=[
   ],
   nested_types=[],
   enum_types=[
   ],
-  options=None,
+  serialized_options=None,
   is_extendable=False,
   syntax='proto3',
   extension_ranges=[],
@@ -205,7 +230,7 @@ _CANCELREQUEST = _descriptor.Descriptor(
   nested_types=[],
   enum_types=[
   ],
-  options=None,
+  serialized_options=None,
   is_extendable=False,
   syntax='proto3',
   extension_ranges=[],
@@ -229,7 +254,7 @@ _CANCELRESPONSE = _descriptor.Descriptor(
   nested_types=[],
   enum_types=[
   ],
-  options=None,
+  serialized_options=None,
   is_extendable=False,
   syntax='proto3',
   extension_ranges=[],
@@ -253,21 +278,21 @@ _COMPLETIONREQUEST = _descriptor.Descriptor(
       has_default_value=False, default_value=_b("").decode('utf-8'),
       message_type=None, enum_type=None, containing_type=None,
       is_extension=False, extension_scope=None,
-      options=None),
+      serialized_options=None, file=DESCRIPTOR),
     _descriptor.FieldDescriptor(
       name='cursor', full_name='ipython.CompletionRequest.cursor', index=1,
       number=2, type=5, cpp_type=1, label=1,
       has_default_value=False, default_value=0,
       message_type=None, enum_type=None, containing_type=None,
       is_extension=False, extension_scope=None,
-      options=None),
+      serialized_options=None, file=DESCRIPTOR),
   ],
   extensions=[
   ],
   nested_types=[],
   enum_types=[
   ],
-  options=None,
+  serialized_options=None,
   is_extendable=False,
   syntax='proto3',
   extension_ranges=[],
@@ -291,14 +316,14 @@ _COMPLETIONRESPONSE = _descriptor.Descriptor(
       has_default_value=False, default_value=[],
       message_type=None, enum_type=None, containing_type=None,
       is_extension=False, extension_scope=None,
-      options=None),
+      serialized_options=None, file=DESCRIPTOR),
   ],
   extensions=[
   ],
   nested_types=[],
   enum_types=[
   ],
-  options=None,
+  serialized_options=None,
   is_extendable=False,
   syntax='proto3',
   extension_ranges=[],
@@ -322,7 +347,7 @@ _STATUSREQUEST = _descriptor.Descriptor(
   nested_types=[],
   enum_types=[
   ],
-  options=None,
+  serialized_options=None,
   is_extendable=False,
   syntax='proto3',
   extension_ranges=[],
@@ -346,14 +371,14 @@ _STATUSRESPONSE = _descriptor.Descriptor(
       has_default_value=False, default_value=0,
       message_type=None, enum_type=None, containing_type=None,
       is_extension=False, extension_scope=None,
-      options=None),
+      serialized_options=None, file=DESCRIPTOR),
   ],
   extensions=[
   ],
   nested_types=[],
   enum_types=[
   ],
-  options=None,
+  serialized_options=None,
   is_extendable=False,
   syntax='proto3',
   extension_ranges=[],
@@ -377,7 +402,7 @@ _STOPREQUEST = _descriptor.Descriptor(
   nested_types=[],
   enum_types=[
   ],
-  options=None,
+  serialized_options=None,
   is_extendable=False,
   syntax='proto3',
   extension_ranges=[],
@@ -401,7 +426,7 @@ _STOPRESPONSE = _descriptor.Descriptor(
   nested_types=[],
   enum_types=[
   ],
-  options=None,
+  serialized_options=None,
   is_extendable=False,
   syntax='proto3',
   extension_ranges=[],
@@ -500,252 +525,65 @@ StopResponse = _reflection.GeneratedProtocolMessageType('StopResponse',
(_messag
 _sym_db.RegisterMessage(StopResponse)


-DESCRIPTOR.has_options = True
-DESCRIPTOR._options = _descriptor._ParseOptions(descriptor_pb2.FileOptions(), _b('\n org.apache.zeppelin.python.protoB\014IPythonProtoP\001\242\002\007IPython'))
-try:
-  # THESE ELEMENTS WILL BE DEPRECATED.
-  # Please use the generated *_pb2_grpc.py files instead.
-  import grpc
-  from grpc.beta import implementations as beta_implementations
-  from grpc.beta import interfaces as beta_interfaces
-  from grpc.framework.common import cardinality
-  from grpc.framework.interfaces.face import utilities as face_utilities
-
-
-  class IPythonStub(object):
-    """The IPython service definition.
-    """
-
-    def __init__(self, channel):
-      """Constructor.
-
-      Args:
-        channel: A grpc.Channel.
-      """
-      self.execute = channel.unary_stream(
-          '/ipython.IPython/execute',
-          request_serializer=ExecuteRequest.SerializeToString,
-          response_deserializer=ExecuteResponse.FromString,
-          )
-      self.complete = channel.unary_unary(
-          '/ipython.IPython/complete',
-          request_serializer=CompletionRequest.SerializeToString,
-          response_deserializer=CompletionResponse.FromString,
-          )
-      self.cancel = channel.unary_unary(
-          '/ipython.IPython/cancel',
-          request_serializer=CancelRequest.SerializeToString,
-          response_deserializer=CancelResponse.FromString,
-          )
-      self.status = channel.unary_unary(
-          '/ipython.IPython/status',
-          request_serializer=StatusRequest.SerializeToString,
-          response_deserializer=StatusResponse.FromString,
-          )
-      self.stop = channel.unary_unary(
-          '/ipython.IPython/stop',
-          request_serializer=StopRequest.SerializeToString,
-          response_deserializer=StopResponse.FromString,
-          )
-
-
-  class IPythonServicer(object):
-    """The IPython service definition.
-    """
-
-    def execute(self, request, context):
-      """Sends code
-      """
-      context.set_code(grpc.StatusCode.UNIMPLEMENTED)
-      context.set_details('Method not implemented!')
-      raise NotImplementedError('Method not implemented!')
-
-    def complete(self, request, context):
-      """Get completion
-      """
-      context.set_code(grpc.StatusCode.UNIMPLEMENTED)
-      context.set_details('Method not implemented!')
-      raise NotImplementedError('Method not implemented!')
-
-    def cancel(self, request, context):
-      """Cancel the running statement
-      """
-      context.set_code(grpc.StatusCode.UNIMPLEMENTED)
-      context.set_details('Method not implemented!')
-      raise NotImplementedError('Method not implemented!')
-
-    def status(self, request, context):
-      """Get ipython kernel status
-      """
-      context.set_code(grpc.StatusCode.UNIMPLEMENTED)
-      context.set_details('Method not implemented!')
-      raise NotImplementedError('Method not implemented!')
-
-    def stop(self, request, context):
-      # missing associated documentation comment in .proto file
-      pass
-      context.set_code(grpc.StatusCode.UNIMPLEMENTED)
-      context.set_details('Method not implemented!')
-      raise NotImplementedError('Method not implemented!')
-
-
-  def add_IPythonServicer_to_server(servicer, server):
-    rpc_method_handlers = {
-        'execute': grpc.unary_stream_rpc_method_handler(
-            servicer.execute,
-            request_deserializer=ExecuteRequest.FromString,
-            response_serializer=ExecuteResponse.SerializeToString,
-        ),
-        'complete': grpc.unary_unary_rpc_method_handler(
-            servicer.complete,
-            request_deserializer=CompletionRequest.FromString,
-            response_serializer=CompletionResponse.SerializeToString,
-        ),
-        'cancel': grpc.unary_unary_rpc_method_handler(
-            servicer.cancel,
-            request_deserializer=CancelRequest.FromString,
-            response_serializer=CancelResponse.SerializeToString,
-        ),
-        'status': grpc.unary_unary_rpc_method_handler(
-            servicer.status,
-            request_deserializer=StatusRequest.FromString,
-            response_serializer=StatusResponse.SerializeToString,
-        ),
-        'stop': grpc.unary_unary_rpc_method_handler(
-            servicer.stop,
-            request_deserializer=StopRequest.FromString,
-            response_serializer=StopResponse.SerializeToString,
-        ),
-    }
-    generic_handler = grpc.method_handlers_generic_handler(
-        'ipython.IPython', rpc_method_handlers)
-    server.add_generic_rpc_handlers((generic_handler,))
-
-
-  class BetaIPythonServicer(object):
-    """The Beta API is deprecated for 0.15.0 and later.
-
-    It is recommended to use the GA API (classes and functions in this
-    file not marked beta) for all further purposes. This class was generated
-    only to ease transition from grpcio<0.15.0 to grpcio>=0.15.0."""
-    """The IPython service definition.
-    """
-    def execute(self, request, context):
-      """Sends code
-      """
-      context.code(beta_interfaces.StatusCode.UNIMPLEMENTED)
-    def complete(self, request, context):
-      """Get completion
-      """
-      context.code(beta_interfaces.StatusCode.UNIMPLEMENTED)
-    def cancel(self, request, context):
-      """Cancel the running statement
-      """
-      context.code(beta_interfaces.StatusCode.UNIMPLEMENTED)
-    def status(self, request, context):
-      """Get ipython kernel status
-      """
-      context.code(beta_interfaces.StatusCode.UNIMPLEMENTED)
-    def stop(self, request, context):
-      # missing associated documentation comment in .proto file
-      pass
-      context.code(beta_interfaces.StatusCode.UNIMPLEMENTED)
-
-
-  class BetaIPythonStub(object):
-    """The Beta API is deprecated for 0.15.0 and later.
-
-    It is recommended to use the GA API (classes and functions in this
-    file not marked beta) for all further purposes. This class was generated
-    only to ease transition from grpcio<0.15.0 to grpcio>=0.15.0."""
-    """The IPython service definition.
-    """
-    def execute(self, request, timeout, metadata=None, with_call=False, protocol_options=None):
-      """Sends code
-      """
-      raise NotImplementedError()
-    def complete(self, request, timeout, metadata=None, with_call=False, protocol_options=None):
-      """Get completion
-      """
-      raise NotImplementedError()
-    complete.future = None
-    def cancel(self, request, timeout, metadata=None, with_call=False, protocol_options=None):
-      """Cancel the running statement
-      """
-      raise NotImplementedError()
-    cancel.future = None
-    def status(self, request, timeout, metadata=None, with_call=False, protocol_options=None):
-      """Get ipython kernel status
-      """
-      raise NotImplementedError()
-    status.future = None
-    def stop(self, request, timeout, metadata=None, with_call=False, protocol_options=None):
-      # missing associated documentation comment in .proto file
-      pass
-      raise NotImplementedError()
-    stop.future = None
-
-
-  def beta_create_IPython_server(servicer, pool=None, pool_size=None, default_timeout=None,
maximum_timeout=None):
-    """The Beta API is deprecated for 0.15.0 and later.
-
-    It is recommended to use the GA API (classes and functions in this
-    file not marked beta) for all further purposes. This function was
-    generated only to ease transition from grpcio<0.15.0 to grpcio>=0.15.0"""
-    request_deserializers = {
-      ('ipython.IPython', 'cancel'): CancelRequest.FromString,
-      ('ipython.IPython', 'complete'): CompletionRequest.FromString,
-      ('ipython.IPython', 'execute'): ExecuteRequest.FromString,
-      ('ipython.IPython', 'status'): StatusRequest.FromString,
-      ('ipython.IPython', 'stop'): StopRequest.FromString,
-    }
-    response_serializers = {
-      ('ipython.IPython', 'cancel'): CancelResponse.SerializeToString,
-      ('ipython.IPython', 'complete'): CompletionResponse.SerializeToString,
-      ('ipython.IPython', 'execute'): ExecuteResponse.SerializeToString,
-      ('ipython.IPython', 'status'): StatusResponse.SerializeToString,
-      ('ipython.IPython', 'stop'): StopResponse.SerializeToString,
-    }
-    method_implementations = {
-      ('ipython.IPython', 'cancel'): face_utilities.unary_unary_inline(servicer.cancel),
-      ('ipython.IPython', 'complete'): face_utilities.unary_unary_inline(servicer.complete),
-      ('ipython.IPython', 'execute'): face_utilities.unary_stream_inline(servicer.execute),
-      ('ipython.IPython', 'status'): face_utilities.unary_unary_inline(servicer.status),
-      ('ipython.IPython', 'stop'): face_utilities.unary_unary_inline(servicer.stop),
-    }
-    server_options = beta_implementations.server_options(request_deserializers=request_deserializers,
response_serializers=response_serializers, thread_pool=pool, thread_pool_size=pool_size, default_timeout=default_timeout,
maximum_timeout=maximum_timeout)
-    return beta_implementations.server(method_implementations, options=server_options)
-
-
-  def beta_create_IPython_stub(channel, host=None, metadata_transformer=None, pool=None,
pool_size=None):
-    """The Beta API is deprecated for 0.15.0 and later.
-
-    It is recommended to use the GA API (classes and functions in this
-    file not marked beta) for all further purposes. This function was
-    generated only to ease transition from grpcio<0.15.0 to grpcio>=0.15.0"""
-    request_serializers = {
-      ('ipython.IPython', 'cancel'): CancelRequest.SerializeToString,
-      ('ipython.IPython', 'complete'): CompletionRequest.SerializeToString,
-      ('ipython.IPython', 'execute'): ExecuteRequest.SerializeToString,
-      ('ipython.IPython', 'status'): StatusRequest.SerializeToString,
-      ('ipython.IPython', 'stop'): StopRequest.SerializeToString,
-    }
-    response_deserializers = {
-      ('ipython.IPython', 'cancel'): CancelResponse.FromString,
-      ('ipython.IPython', 'complete'): CompletionResponse.FromString,
-      ('ipython.IPython', 'execute'): ExecuteResponse.FromString,
-      ('ipython.IPython', 'status'): StatusResponse.FromString,
-      ('ipython.IPython', 'stop'): StopResponse.FromString,
-    }
-    cardinalities = {
-      'cancel': cardinality.Cardinality.UNARY_UNARY,
-      'complete': cardinality.Cardinality.UNARY_UNARY,
-      'execute': cardinality.Cardinality.UNARY_STREAM,
-      'status': cardinality.Cardinality.UNARY_UNARY,
-      'stop': cardinality.Cardinality.UNARY_UNARY,
-    }
-    stub_options = beta_implementations.stub_options(host=host, metadata_transformer=metadata_transformer,
request_serializers=request_serializers, response_deserializers=response_deserializers, thread_pool=pool,
thread_pool_size=pool_size)
-    return beta_implementations.dynamic_stub(channel, 'ipython.IPython', cardinalities, options=stub_options)
-except ImportError:
-  pass
+DESCRIPTOR._options = None
+
+_IPYTHON = _descriptor.ServiceDescriptor(
+  name='IPython',
+  full_name='ipython.IPython',
+  file=DESCRIPTOR,
+  index=0,
+  serialized_options=None,
+  serialized_start=568,
+  serialized_end=891,
+  methods=[
+  _descriptor.MethodDescriptor(
+    name='execute',
+    full_name='ipython.IPython.execute',
+    index=0,
+    containing_service=None,
+    input_type=_EXECUTEREQUEST,
+    output_type=_EXECUTERESPONSE,
+    serialized_options=None,
+  ),
+  _descriptor.MethodDescriptor(
+    name='complete',
+    full_name='ipython.IPython.complete',
+    index=1,
+    containing_service=None,
+    input_type=_COMPLETIONREQUEST,
+    output_type=_COMPLETIONRESPONSE,
+    serialized_options=None,
+  ),
+  _descriptor.MethodDescriptor(
+    name='cancel',
+    full_name='ipython.IPython.cancel',
+    index=2,
+    containing_service=None,
+    input_type=_CANCELREQUEST,
+    output_type=_CANCELRESPONSE,
+    serialized_options=None,
+  ),
+  _descriptor.MethodDescriptor(
+    name='status',
+    full_name='ipython.IPython.status',
+    index=3,
+    containing_service=None,
+    input_type=_STATUSREQUEST,
+    output_type=_STATUSRESPONSE,
+    serialized_options=None,
+  ),
+  _descriptor.MethodDescriptor(
+    name='stop',
+    full_name='ipython.IPython.stop',
+    index=4,
+    containing_service=None,
+    input_type=_STOPREQUEST,
+    output_type=_STOPRESPONSE,
+    serialized_options=None,
+  ),
+])
+_sym_db.RegisterServiceDescriptor(_IPYTHON)
+
+DESCRIPTOR.services_by_name['IPython'] = _IPYTHON
+
 # @@protoc_insertion_point(module_scope)
diff --git a/python/src/main/resources/grpc/python/ipython_server.py b/python/src/main/resources/grpc/python/ipython_server.py
index 36e0a13..3fd0a8c 100644
--- a/python/src/main/resources/grpc/python/ipython_server.py
+++ b/python/src/main/resources/grpc/python/ipython_server.py
@@ -49,23 +49,37 @@ class IPython(ipython_pb2_grpc.IPythonServicer):
         print("execute code:\n")
         print(request.code.encode('utf-8'))
         sys.stdout.flush()
-        stdout_queue = queue.Queue(maxsize = 10)
         stderr_queue = queue.Queue(maxsize = 10)
-        image_queue = queue.Queue(maxsize = 5)
+        text_queue = queue.Queue(maxsize = 10)
+        png_queue = queue.Queue(maxsize = 5)
+        jpeg_queue = queue.Queue(maxsize = 5)
+        html_queue = queue.Queue(maxsize = 10)

         def _output_hook(msg):
             msg_type = msg['header']['msg_type']
             content = msg['content']
+            print("******************* CONTENT ******************")
+            print(str(content)[:400])
             if msg_type == 'stream':
-                stdout_queue.put(content['text'])
+                text_queue.put(content['text'])
             elif msg_type in ('display_data', 'execute_result'):
-                stdout_queue.put(content['data'].get('text/plain', ''))
-                if 'image/png' in content['data']:
-                    image_queue.put(content['data']['image/png'])
+                if 'text/html' in content['data']:
+                    html_queue.put(content['data']['text/html'])
+                elif 'image/png' in content['data']:
+                    png_queue.put(content['data']['image/png'])
+                elif 'image/jpeg' in content['data']:
+                    jpeg_queue.put(content['data']['image/jpeg'])
+                elif 'text/plain' in content['data']:
+                    text_queue.put(content['data']['text/plain'])
+                elif 'application/javascript' in content['data']:
+                    print('add to html queue: ' + str(content)[:100])
+                    html_queue.put('<script> ' + content['data']['application/javascript']
+ ' </script>\n')
+                elif 'application/vnd.holoviews_load.v0+json' in content['data']:
+                    html_queue.put('<script> ' + content['data']['application/vnd.holoviews_load.v0+json']
+ ' </script>\n')
+
             elif msg_type == 'error':
                 stderr_queue.put('\n'.join(content['traceback']))

-
         payload_reply = []
         def execute_worker():
             reply = self._kc.execute_interactive(request.code,
@@ -80,22 +94,33 @@ class IPython(ipython_pb2_grpc.IPythonServicer):
         # Execution might be stuck there:
         # https://github.com/jupyter/jupyter_client/blob/master/jupyter_client/blocking/client.py#L32
         while t.is_alive() and self.isKernelAlive():
-            while not stdout_queue.empty():
-                output = stdout_queue.get()
+            while not text_queue.empty():
+                output = text_queue.get()
                 yield ipython_pb2.ExecuteResponse(status=ipython_pb2.SUCCESS,
                                                   type=ipython_pb2.TEXT,
                                                   output=output)
+            while not html_queue.empty():
+                output = html_queue.get()
+                yield ipython_pb2.ExecuteResponse(status=ipython_pb2.SUCCESS,
+                                                  type=ipython_pb2.HTML,
+                                                  output=output)
             while not stderr_queue.empty():
                 output = stderr_queue.get()
                 yield ipython_pb2.ExecuteResponse(status=ipython_pb2.ERROR,
                                                   type=ipython_pb2.TEXT,
                                                   output=output)
-            while not image_queue.empty():
-                output = image_queue.get()
+            while not png_queue.empty():
+                output = png_queue.get()
+                yield ipython_pb2.ExecuteResponse(status=ipython_pb2.SUCCESS,
+                                                  type=ipython_pb2.PNG,
+                                                  output=output)
+            while not jpeg_queue.empty():
+                output = jpeg_queue.get()
                 yield ipython_pb2.ExecuteResponse(status=ipython_pb2.SUCCESS,
-                                                  type=ipython_pb2.IMAGE,
+                                                  type=ipython_pb2.JPEG,
                                                   output=output)

+
         # if kernel is not alive (should be same as thread is still alive), means that we
face
         # an unexpected issue.
         if not self.isKernelAlive() or t.is_alive():
@@ -104,22 +129,31 @@ class IPython(ipython_pb2_grpc.IPythonServicer):
                                                 output="Ipython kernel has been stopped.
Please check logs. It might be because of an out of memory issue.")
             return

-        while not stdout_queue.empty():
-            output = stdout_queue.get()
+        while not text_queue.empty():
+            output = text_queue.get()
             yield ipython_pb2.ExecuteResponse(status=ipython_pb2.SUCCESS,
                                               type=ipython_pb2.TEXT,
                                               output=output)
+        while not html_queue.empty():
+            output = html_queue.get()
+            yield ipython_pb2.ExecuteResponse(status=ipython_pb2.SUCCESS,
+                                              type=ipython_pb2.HTML,
+                                              output=output)
         while not stderr_queue.empty():
             output = stderr_queue.get()
             yield ipython_pb2.ExecuteResponse(status=ipython_pb2.ERROR,
                                               type=ipython_pb2.TEXT,
                                               output=output)
-        while not image_queue.empty():
-            output = image_queue.get()
+        while not png_queue.empty():
+            output = png_queue.get()
             yield ipython_pb2.ExecuteResponse(status=ipython_pb2.SUCCESS,
-                                              type=ipython_pb2.IMAGE,
+                                              type=ipython_pb2.PNG,
+                                              output=output)
+        while not jpeg_queue.empty():
+            output = jpeg_queue.get()
+            yield ipython_pb2.ExecuteResponse(status=ipython_pb2.SUCCESS,
+                                              type=ipython_pb2.JPEG,
                                               output=output)
-
         if payload_reply:
             result = []
             for payload in payload_reply[0]['content']['payload']:
diff --git a/python/src/test/java/org/apache/zeppelin/python/IPythonInterpreterTest.java b/python/src/test/java/org/apache/zeppelin/python/IPythonInterpreterTest.java
index 4a4c809..e084bfe 100644
--- a/python/src/test/java/org/apache/zeppelin/python/IPythonInterpreterTest.java
+++ b/python/src/test/java/org/apache/zeppelin/python/IPythonInterpreterTest.java
@@ -185,7 +185,6 @@ public class IPythonInterpreterTest extends BasePythonInterpreterTest
{
     // check there must be one IMAGE output
     boolean hasImageOutput = false;
     boolean hasLineText = false;
-    boolean hasFigureText = false;
     for (InterpreterResultMessage msg : interpreterResultMessages) {
       if (msg.getType() == InterpreterResult.Type.IMG) {
         hasImageOutput = true;
@@ -194,14 +193,9 @@ public class IPythonInterpreterTest extends BasePythonInterpreterTest
{
           && msg.getData().contains("matplotlib.lines.Line2D")) {
         hasLineText = true;
       }
-      if (msg.getType() == InterpreterResult.Type.TEXT
-          && msg.getData().contains("matplotlib.figure.Figure")) {
-        hasFigureText = true;
-      }
     }
     assertTrue("No Image Output", hasImageOutput);
     assertTrue("No Line Text", hasLineText);
-    assertTrue("No Figure Text", hasFigureText);

     // bokeh
     // bokeh initialization
@@ -256,6 +250,35 @@ public class IPythonInterpreterTest extends BasePythonInterpreterTest
{
     assertTrue("No Image Output", hasImageOutput);
   }

+
+  // TODO(zjffdu) Enable it after new altair is released with this PR.
+  // https://github.com/altair-viz/altair/pull/1620
+  //@Test
+  public void testHtmlOutput() throws InterpreterException, IOException {
+    // html output
+    InterpreterContext context = getInterpreterContext();
+    InterpreterResult result = interpreter.interpret(
+            "        import altair as alt\n" +
+                    "        print(alt.renderers.active)\n" +
+                    "        alt.renderers.enable(\"colab\")\n" +
+                    "        import altair as alt\n" +
+                    "        # load a simple dataset as a pandas DataFrame\n" +
+                    "        from vega_datasets import data\n" +
+                    "        cars = data.cars()\n" +
+                    "        \n" +
+                    "        alt.Chart(cars).mark_point().encode(\n" +
+                    "            x='Horsepower',\n" +
+                    "            y='Miles_per_Gallon',\n" +
+                    "            color='Origin',\n" +
+                    "        ).interactive()", context);
+    assertEquals(InterpreterResult.Code.SUCCESS, result.code());
+    assertEquals(2, context.out.size());
+    assertEquals(InterpreterResult.Type.TEXT,
+            context.out.toInterpreterResultMessage().get(0).getType());
+    assertEquals(InterpreterResult.Type.HTML,
+            context.out.toInterpreterResultMessage().get(1).getType());
+  }
+
   @Test
   public void testGrpcFrameSize() throws InterpreterException, IOException {
     tearDown();
diff --git a/zeppelin-interpreter/src/main/java/org/apache/zeppelin/dep/DependencyResolver.java
b/zeppelin-interpreter/src/main/java/org/apache/zeppelin/dep/DependencyResolver.java
index 0acfca9..495c69b 100644
--- a/zeppelin-interpreter/src/main/java/org/apache/zeppelin/dep/DependencyResolver.java
+++ b/zeppelin-interpreter/src/main/java/org/apache/zeppelin/dep/DependencyResolver.java
@@ -96,7 +96,7 @@ public class DependencyResolver extends AbstractDependencyResolver {
         File destFile = new File(destPath, srcFile.getName());
         if (!destFile.exists() || !FileUtils.contentEquals(srcFile, destFile)) {
           FileUtils.copyFile(srcFile, destFile);
-          logger.info("copy {} to {}", srcFile.getAbsolutePath(), destPath);
+          logger.debug("copy {} to {}", srcFile.getAbsolutePath(), destPath);
         }
       }
     }
@@ -114,7 +114,7 @@ public class DependencyResolver extends AbstractDependencyResolver {

     if (!destFile.exists() || !FileUtils.contentEquals(srcFile, destFile)) {
       FileUtils.copyFile(srcFile, destFile);
-      logger.info("copy {} to {}", srcFile.getAbsolutePath(), destPath);
+      logger.debug("copy {} to {}", srcFile.getAbsolutePath(), destPath);
     }
   }

@@ -142,7 +142,7 @@ public class DependencyResolver extends AbstractDependencyResolver {
     List<File> files = new LinkedList<>();
     for (ArtifactResult artifactResult : listOfArtifact) {
       files.add(artifactResult.getArtifact().getFile());
-      logger.info("load {}", artifactResult.getArtifact().getFile().getAbsolutePath());
+      logger.debug("load {}", artifactResult.getArtifact().getFile().getAbsolutePath());
     }

     return files;
diff --git a/zeppelin-zengine/src/main/java/org/apache/zeppelin/notebook/repo/VFSNotebookRepo.java
b/zeppelin-zengine/src/main/java/org/apache/zeppelin/notebook/repo/VFSNotebookRepo.java
index 012f6a4..d8d8df0 100644
--- a/zeppelin-zengine/src/main/java/org/apache/zeppelin/notebook/repo/VFSNotebookRepo.java
+++ b/zeppelin-zengine/src/main/java/org/apache/zeppelin/notebook/repo/VFSNotebookRepo.java
@@ -102,6 +102,10 @@ public class VFSNotebookRepo implements NotebookRepo {
   private Map<String, NoteInfo> listFolder(FileObject fileObject) throws IOException
{
     Map<String, NoteInfo> noteInfos = new HashMap<>();
     if (fileObject.isFolder()) {
+      if (fileObject.getName().getBaseName().startsWith(".")) {
+        LOGGER.warn("Skip hidden folder: " + fileObject.getName().getPath());
+        return noteInfos;
+      }
       for (FileObject child : fileObject.getChildren()) {
         noteInfos.putAll(listFolder(child));
       }


Mime
View raw message
